Copper Low Pressure Indoor Cylinders for Wetbacks


Manufactured in NZ since the 1930's

Extensive range of capacities (135-180 L) and sizes means hot water cylinder replacement is easy.

Designed for those wanting an economical solution for hot water. These are the lowest-cost cylinders and ideal if you need a replacement low pressure hot water cylinder.

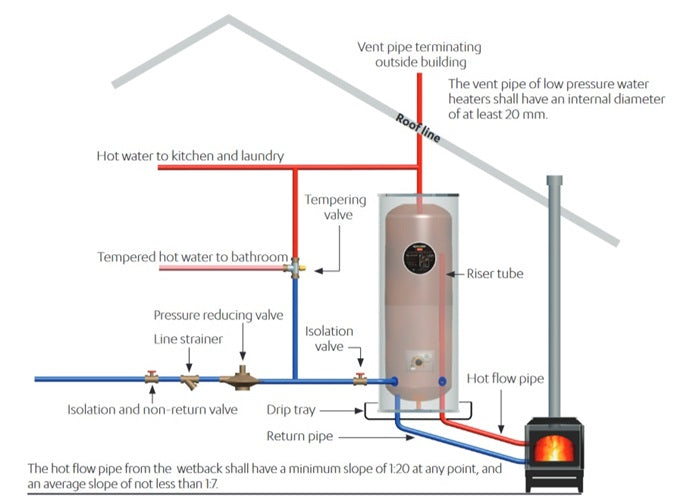

Wetback options
Many wood, pellet fires, or burner systems can have a wetback fitted to them. A wetback can work as a valuable supplement to your hot water system.

Easy installation as connection to existing plumbing is easy with triple inlets, just choose left, right, or bottom for your cold water inlet.

Suitability
   • Indoor mains and low pressure systems
   • Residential and commercial applications
   • Left or right hand cold inlet connections

Not suitable as a pool or spa heater.
System should be located and arranged so as to achieve the closest proximity to water draw off points.

Rinnai cylinders are manufactured to suit most NZ council water supplies. However some supplies can have a detrimental effect on the cylinder, its operation and life expectancy.
Water supplies with a high level of calcium carbonate (hard water) can cause scaling on hot surfaces. We recommend a temperature of no more than 65 °C to minimise scale buildup. Scale reducing or water softening devices should be considered in hard water areas.  The unit is not guaranteed against damage due to scaling. For details of water quality please refer to the water quality parameters in the warranty.
